两头水滴形电路板间隔柱 Teardrop Head Dual Locking Board Support Post
|
|
|
材质：PA66
防火等级：UL 94V-2/ V-0
颜色：自然色
操作温度：-40°C to 85°C
Unit: mm |
|
Part No.
|
A
|
|

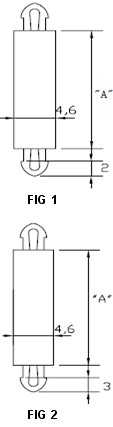

FIG 1
|
FIG 2
|

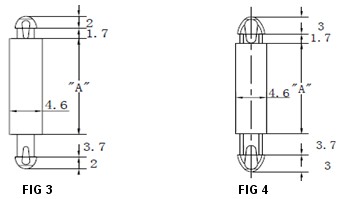

FIG 3
|
FIG 4
|
±0.4mm
|
|
TDLP-102
|
TDLP-202
|
TDLP-302
|
TDLP-402
|
2.0
|
|
TDLP-103
|
TDLP-203
|
TDLP-303
|
TDLP-403
|
3.0
|
|
TDLP-103L
|
|
|
|
3.5
|
|
TDLP-104
|
TDLP-204
|
TDLP-304
|
TDLP-404
|
4.0
|
|
TDLP-105
|
TDLP-205
|
TDLP-305
|
TDLP-405
|
5.0
|
|
TDLP-106
|
TDLP-206
|
TDLP-306
|
TDLP-406
|
6.0
|
|
TDLP-107
|
TDLP-207
|
TDLP-307
|
TDLP-407
|
7.0
|
|
TDLP-108
|
TDLP-208
|
TDLP-308
|
TDLP-408
|
8.0
|
|
TDLP-108L
|
|
|
|
8.5
|
|
TDLP-109
|
TDLP-209
|
TDLP-309
|
TDLP-409
|
9.0
|
|
TDLP-110
|
TDLP-210
|
TDLP-310
|
TDLP-410
|
10.0
|
|
TDLP-112
|
TDLP-212
|
TDLP-312
|
TDLP-412
|
12.0
|
|
TDLP-112L
|
|
|
|
12.7
|
|
TDLP-114
|
TDLP-214
|
TDLP-314
|
TDLP-414
|
14.0
|
|
TDLP-116
|
TDLP-216
|
TDLP-316
|
TDLP-416
|
16.0
|
|
TDLP-118
|
TDLP-218
|
TDLP-318
|
TDLP-418
|
18.0
|
|
TDLP-120
|
TDLP-220
|
TDLP-320
|
TDLP-420
|
20.0
|
|
TDLP-122
|
TDLP-222
|
TDLP-322
|
TDLP-422
|
22.0
|
|
|
|
FIG
|
安装孔径
|
板厚
|
|
顶部
|
底部
|
顶部
|
底部
|
|
1
|
2.5±0.05mm
|
1.6mm
|
|
2
|
3.5±0.05mm
|
|
3
|
2.5±0.05mm
|
1.6mm
|
3.6mm
|
|
4
|
3.5±0.05mm
|
|
|
|
