反扣式电路板间隔柱 Reverse Arrow Locking Circuit Board Support
|
|
材质：PA66
防火等级：UL94 V-2/ V0
颜色：自然色
操作温度：-40°C to 85°C
Unit: mm
|
 |
|
Part No.
|
A
|
|

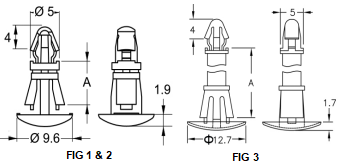

FIG 1
|
FIG 2
|
FIG 3
|
±0.40
|
|
RACBS-606
|
RACBS-706
|
|
6.0
|
|
RACBS-607
|
RACBS-707
|
|
7.0
|
|
RACBS-608
|
RACBS-708
|
RACBS-808
|
8.0
|
|
RACBS-610
|
RACBS-710
|
RACBS-810
|
10.0
|
|
RACBS-612
|
RACBS-712
|
RACBS-812
|
12.0
|
|
RACBS-614
|
RACBS-714
|
RACBS-814
|
14.0
|
|
RACBS-616
|
RACBS-716
|
RACBS-816
|
16.0
|
|
|
FIG
|
安装孔径
|
板厚
|
|
顶部
|
底部
|
顶部
|
底部
|
|
1
|
4.0±0.08
|
5.4±0.08
|
1.6mm
|
1.6
|
|
2
|
2.0
|
|
3
|
1.0~1.6
|
|
